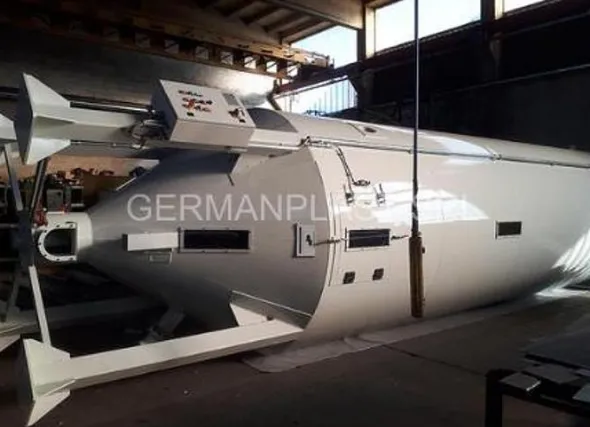

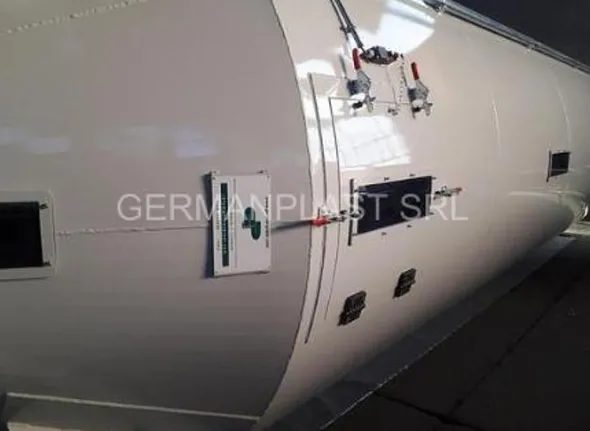

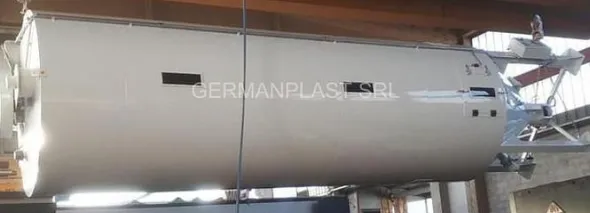

CROSSED MIXING SYSTEM 2 x 30.000 lt.

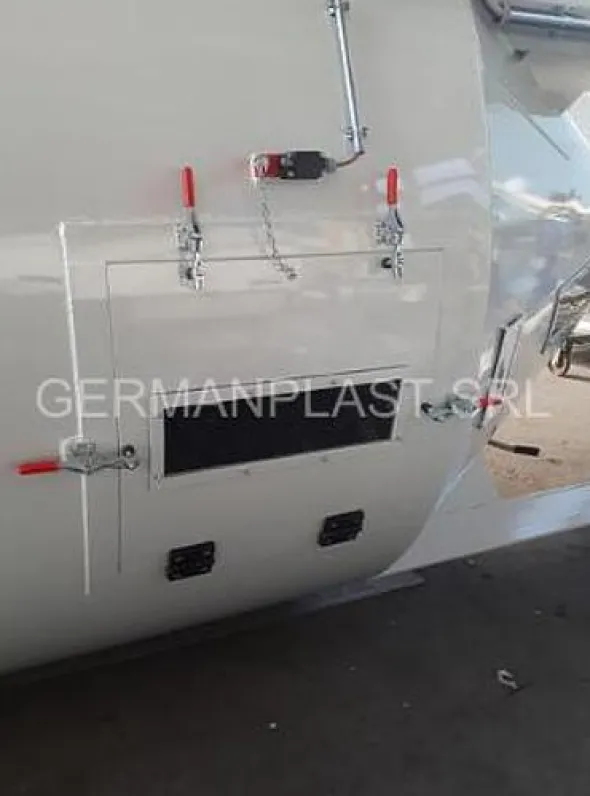

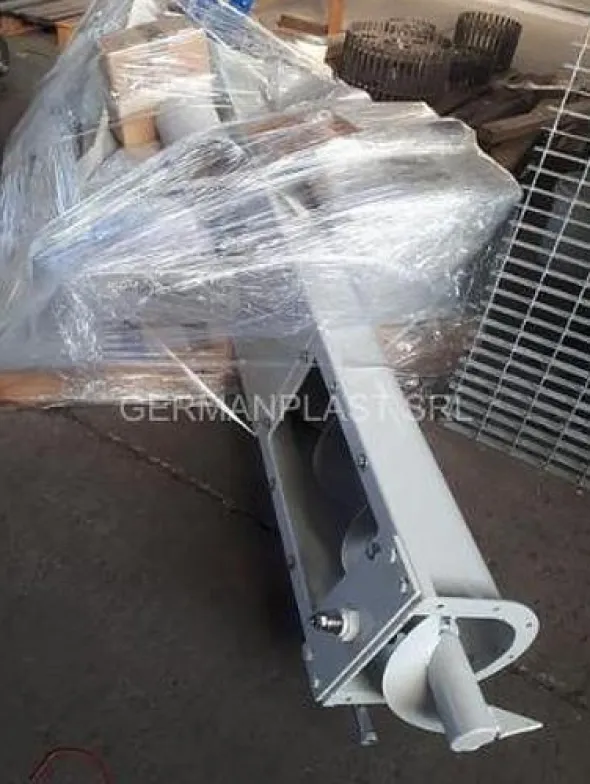

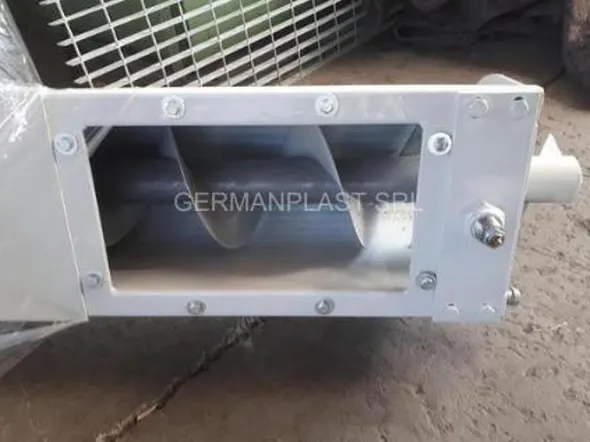

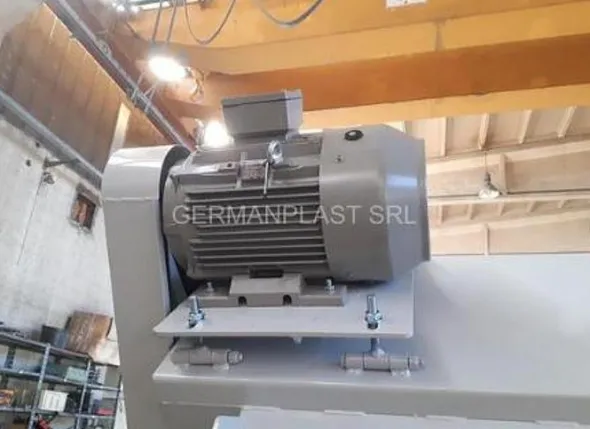

CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS The system includes n.2 x 30.000 lt. (or bespoke) vertical mixers which fill each other through the endless screw conveyor. for each mixer : total height approx 9.500 mm including transmission group max diam. 2400 mm.(standard transport) – 2 x LKW for the whole system constructed in painted electro-welded carbon steel. inner auger diam.350 mm. lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500 pulley and belt transmission, protected by carters inspection doors with safety limits cleaning hinged door with on bottom of cone for complete discharging, with safety opening loading hopper with conveying screw bottom discharging on the other mixer side discharging pipe to big bag with valve mm. at 2.500 mm from ground electric level indicator, paddle type electric motor 22 kw complete with control panel. electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance, drawings and instructions manual in English.
