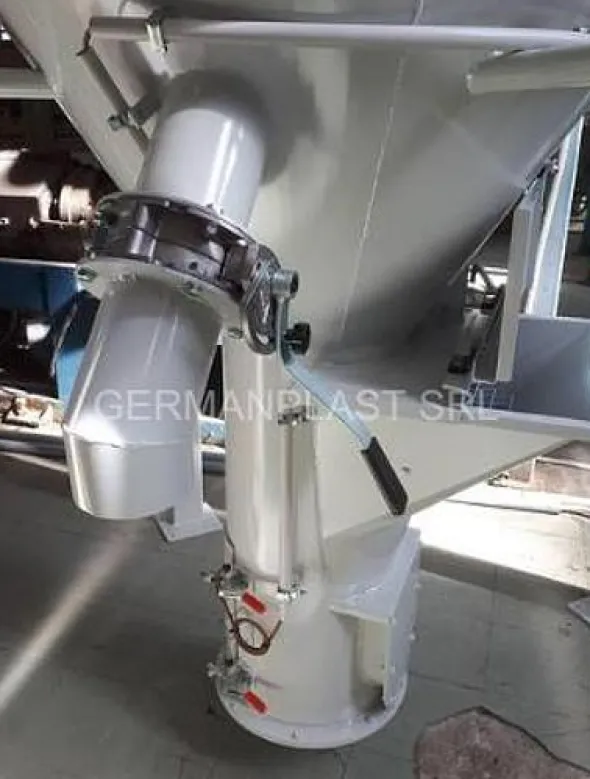

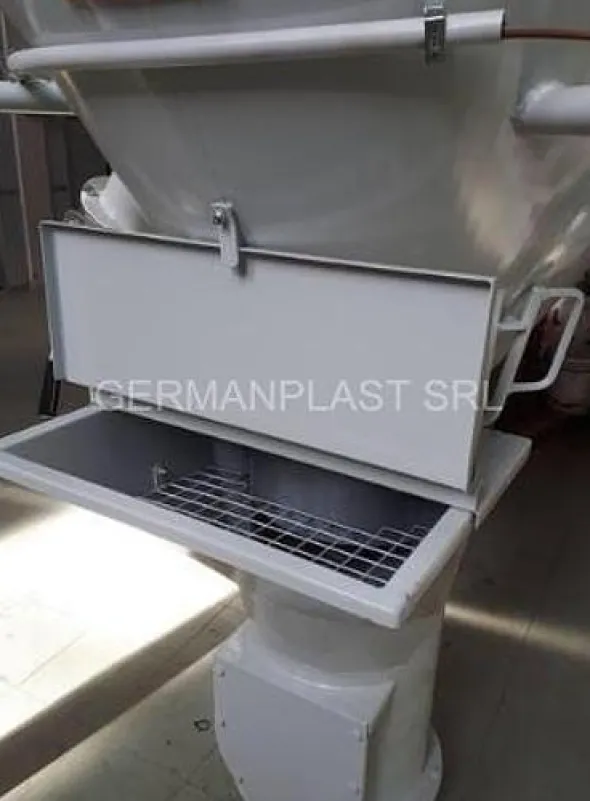

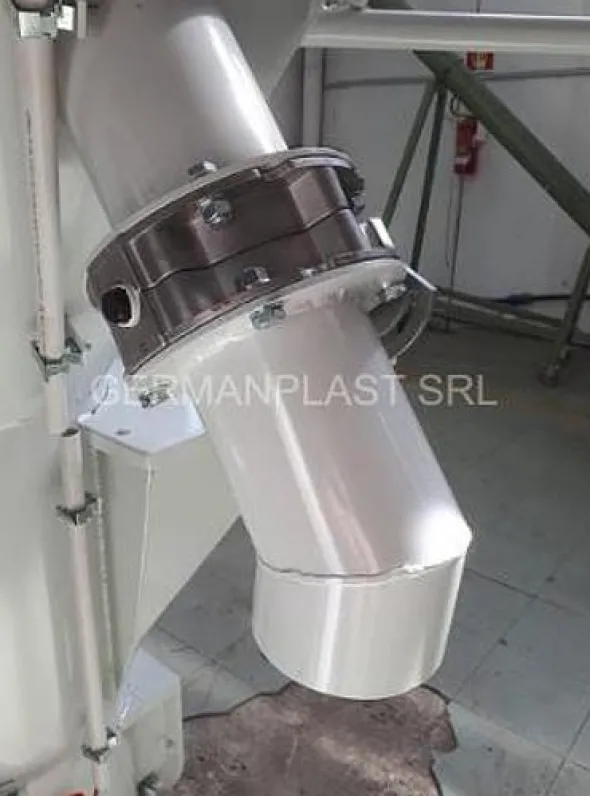

DRYING SYSTEM for VERTICAL MIXERS

This is an accessory to our buffer silos range (GE253) not a stand-alone unit. Mostly used to dry EPS scraps Standard configuration (customizable): 1,1 kw fan in a painted steel cage 15,3 kw heating unit size 400x300x300 mm. Metallic cell filters 500×500 mm. complete with galvanized steel frame and in/out connections System of pipings 100 and 200 mm diam. , curves, clamps, to convey heated air into the silo. Electropneumatic guillotine shutters in galvanized steel. temperature probe, connections. Complete with electric cabinet managing the whole system. User’s manual, drawings, CE compliance
