VERTICAL MIXER 5.000 lt.

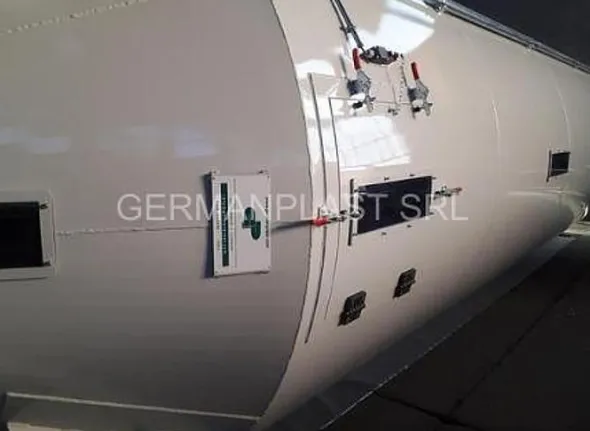

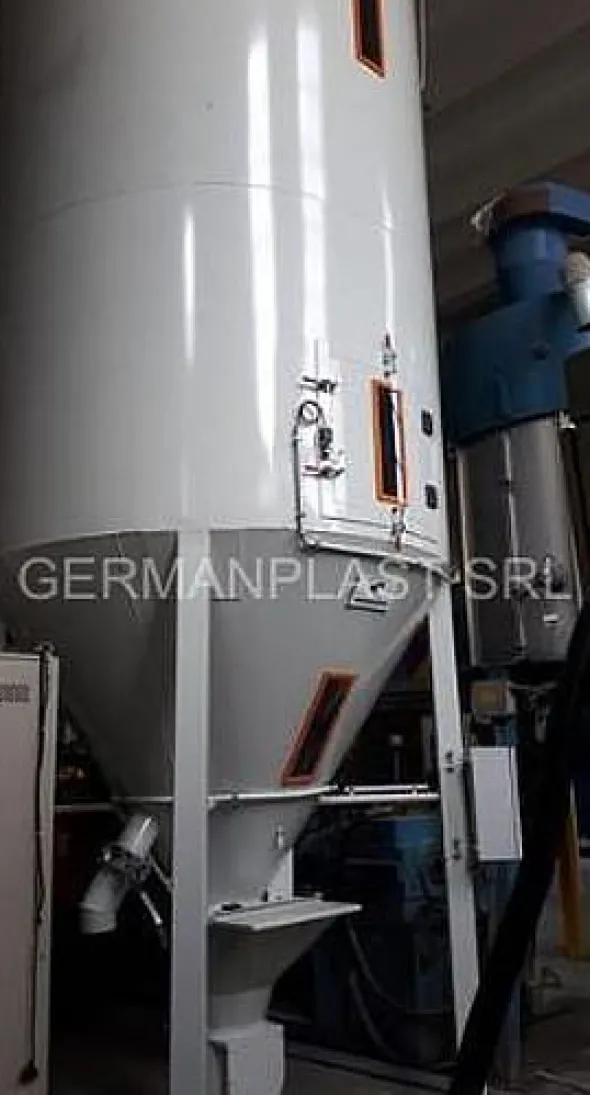

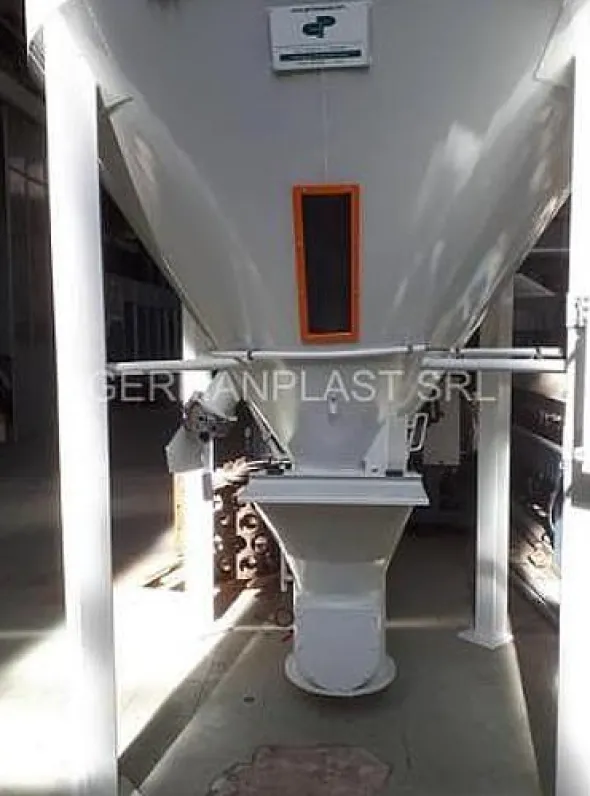

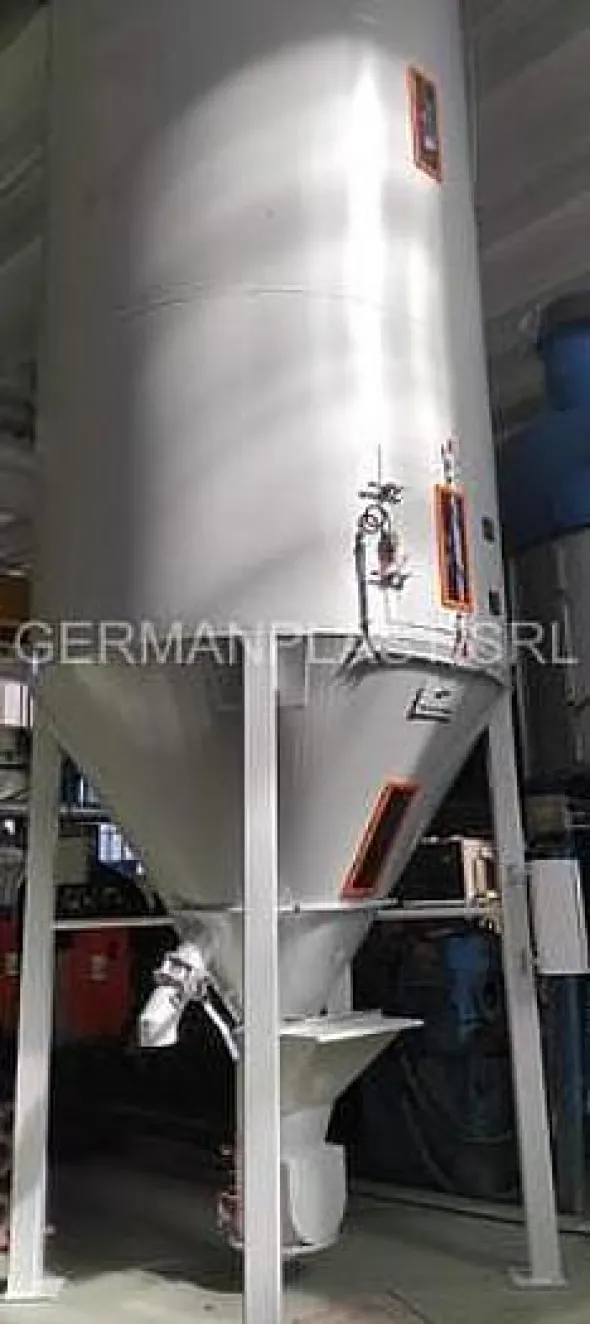

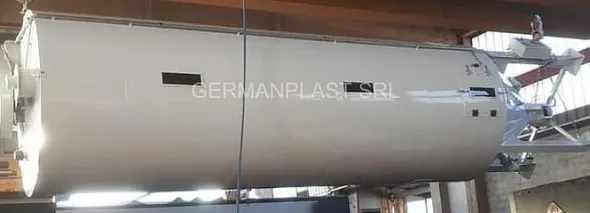

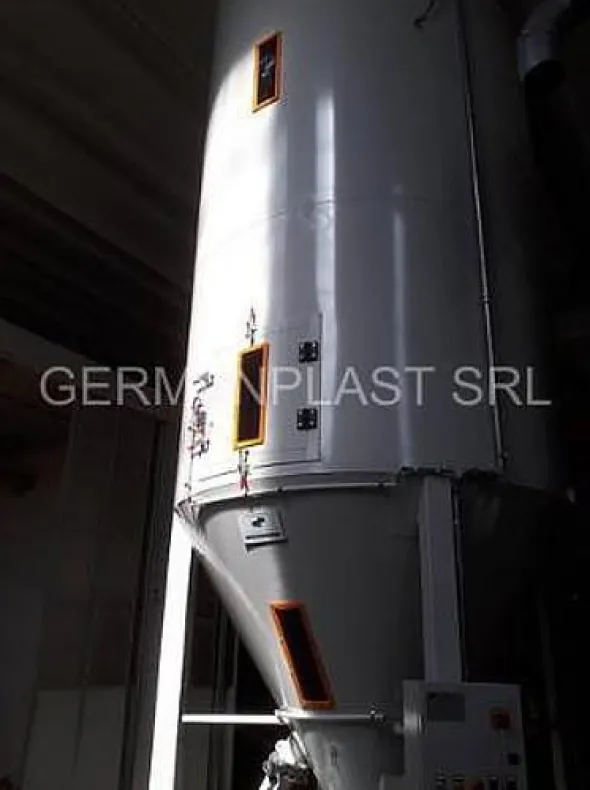

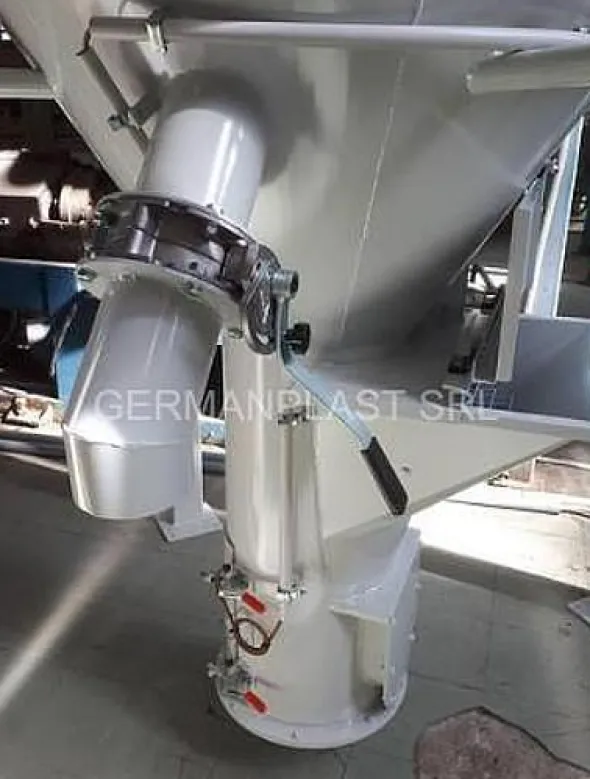

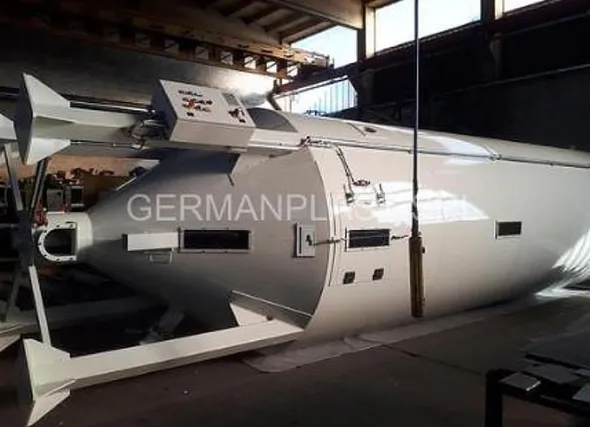

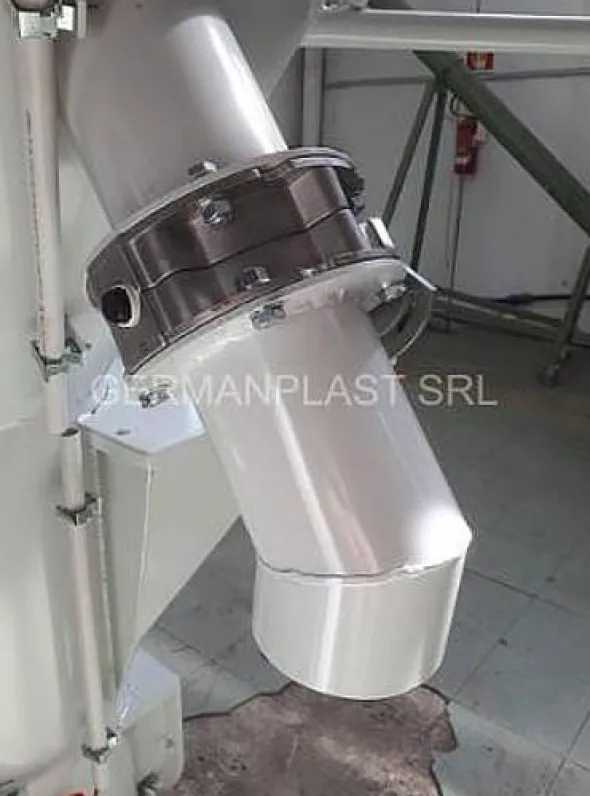

VERTICAL MIXER 5 m3 capacity total height approx 4.500 mm including transmission group max Ø 1.800 mm. constructed in painted electro-welded carbon steel. inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500 pulley and belt transmission, protected by carters inspection doors with safety limits cleaning hinged door on bottom of cone for complete discharging, with safety opening side discharging pipe to big bag with valve at 2.500 mm from ground max electric level indicator, paddle type automatic greasing kit 7,5 kw drive complete with control panel. electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual
